Touchscreen Analysis Case Study Project

Touchscreen Analysis
Case Study

Target Products

Various Smartphones

Purpose of Touchscreen Analysis

Our touchscreen analysis focused on determining the structure and material of the touchscreens

Procedure

Performed smartphone teardowns to expose the screens, the touchscreen controllers, and their interfaces
Performed meticulous investigations on how to expose the touchscreen mesh
Took high resolution optical and Xray images of the mesh
Performed cross-sectioning of the touchscreen at various locations

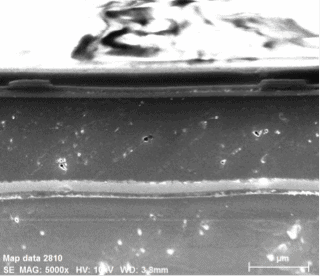

Took SEM images and EDS material analysis of the cross sections

Result

Touchsreen Analysis

Analyzed the images and the material in the cross section to confirm the existence of the touchsensor mesh
Analyzed images to determine the structure of the sensor mesh

Images
