1. Innovations in Lithium-ion Batteries
Lithium-ion batteries play a critical role across electric vehicles (EVs), energy storage systems (ESS), and consumer electronics due to their high energy density, long cycle life, and fast-charging capability. In EVs, they enable extended driving ranges and reliable performance, serving as the backbone of modern transportation electrification. In consumer electronics, from smartphones to laptops, lithium-ion batteries provide lightweight, durable, and efficient power that supports the demands of portable, always-connected devices. Recently, their importance in large-scale ESS has grown significantly as utilities and industries increasingly rely on lithium-ion–based storage to stabilize renewable energy, support peak-shaving, and enhance grid resilience
Key technological advances in lithium-ion batteries are aimed at increasing energy density, extending cycle life, enabling faster charge–discharge rates, and improving overall safety through innovations in cell architecture and materials. Progress in cell design—including optimized active-material thickness, improved tab configurations, refined winding/stacking pitch, and better balancing of active and inactive layers—reduces internal resistance and boosts capacity. Advances in anode materials, such as incorporating silicon, using multilayered structures, and combining synthetic and natural graphite, further enhance storage capability while managing volume changes. On the cathode side, high-nickel compositions, targeted dopants, protective surface coatings, and engineered mixtures of particles with different mean particle sizes improve packing density, mitigate microcracking, and enhance overall electrochemical performance. Complementing these are electrolyte additives that increase ionic mobility, stabilize interface layers, and enable rapid charging, along with safer, next-generation separators—including ceramic-coated or shutdown-capable membranes—that enhance thermal stability without compromising ionic conductivity. Together, these innovations are moving lithium-ion technology toward higher-performing, safer, and more durable energy systems.
2. Technical Capability for Advanced Lithium-Ion Battery Innovation Analysis
To support the investigation, evaluation, validation, and/or benchmarking of advanced lithium-ion battery technologies, GHB Intellect offers a comprehensive, multi-disciplinary Battery Cell Characterization service[1]. Our analytical framework provides deep structural, chemical, electrochemical, and crystallographic insights necessary to assess next-generation innovations—including high-energy electrodes, fast-charging architectures, advanced coatings, dopant strategies, engineered particle-size distributions, and safety-enhancing separator/electrolyte systems.
Our methodology incorporates non-invasive inspection, full structural teardown, microscopy, atomically resolved materials analysis, chemical fingerprinting, and electrochemical performance evaluation as necessary. This enables precise characterization of both foundational design choices and cutting-edge enhancements across anode, cathode, separator, and electrolyte systems.
[1] GHB Intellect also has substantial experience in investigating battery management systems, which is outside of the scope of this paper.
2.1 Non-Invasive Structural and Dimensional Assessment
Prior to any destructive testing, GHB Intellect performs a detailed non-invasive analysis using X-ray and CT imaging to assess:
- Internal jelly-roll or stacking architecture
- Tab geometry and welding quality
- Electrode alignment and winding pitch
- Terminal sealing and casing integrity
- Presence of swelling, defects, voids, or misalignments
X-ray Imaging. This stage establishes a baseline for structural quality, identifies potential safety-critical features, and guides the focus of subsequent destructive analyses.
2.2 Microscopy, Layer Architecture, and Electrodes Cross-Section Analysis
Following controlled opening and sample extraction, our team conducts detailed 2D and 3D structural analyses using:
- Planar and cross-section SEM
- High-resolution SEM-EDS mapping
- FIB-SEM (2D slicing & 3D tomography)
- Layer thickness, porosity, and coating uniformity measurements
These analyses reveal:
- Active-material layer thickness and uniformity
- Current-collector thickness and adhesion quality
- Coating density and binder distribution
- Porosity, particle connectivity, and electrode integrity
Cathode Cross-Section SEM. This level of detail is essential for evaluating improvements in energy density, mechanical robustness, and charge-transfer efficiency.
2.3. Particle-Size Engineering and Morphology Characterization
GHB Intellect can evaluate electrode formulation strategies (including engineered particle-size distributions, secondary-particle architecture, and morphological uniformity) using:
- Laser diffraction (D10, D50, D90)
- Optical microscopy
- PFIB-assisted particle mapping
- Crystallite size estimation via XRD peak broadening

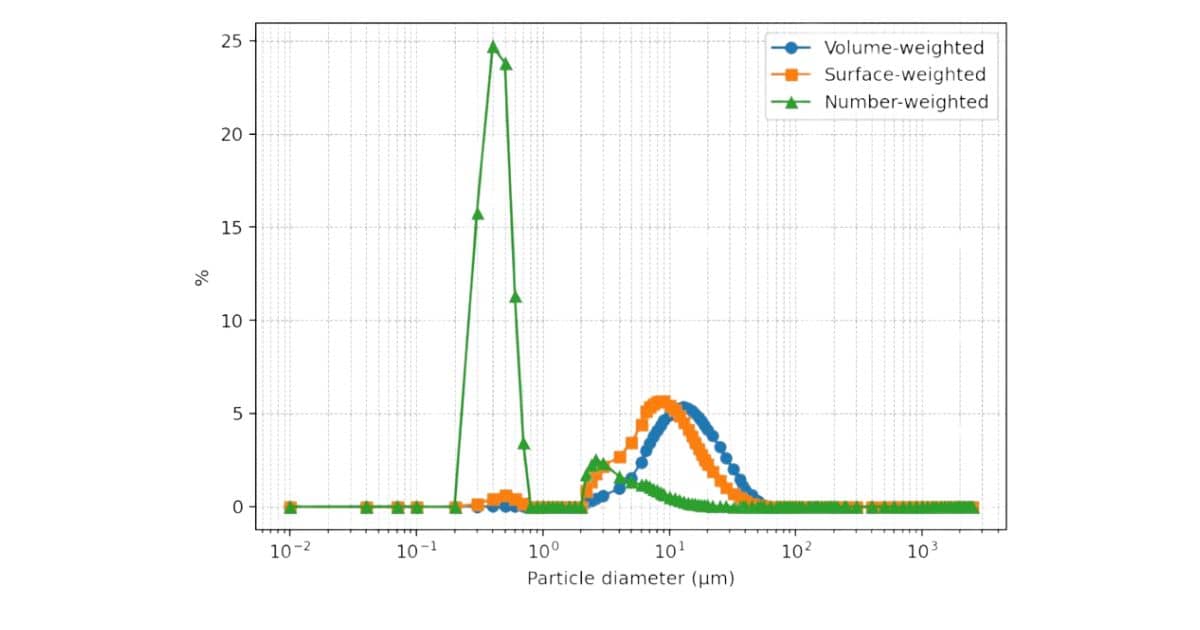

Particle Size Distribution.This helps quantify key industry innovations such as bi-modal or multi-modal particle size blending for enhanced packing density and reduced microcracking.
2.4. Advanced Crystallographic and Atomic-Scale Testing
To verify next-generation electrode designs, GHB Intellect deploys state-of-the-art crystallographic and atomic-scale probes:
- HRTEM + FFT to distinguish layered/spinel/rock-salt phases
- STEM-EDS & STEM-EELS to map dopants, surface reconstructions, and oxidation gradients
- EBSD for grain orientation, size, and high-angle boundary distribution
- XRD + Rietveld refinement for phase quantification and lattice parameter extraction
These methods detect subtle but critical performance-related innovations such as dopant placement, phase heterogeneity, microstrain, and reconstructed surface layers.
TEM Images: (a) Low-Magnification Overview; (b) High-Resolution Atomic-Scale Lattice Image

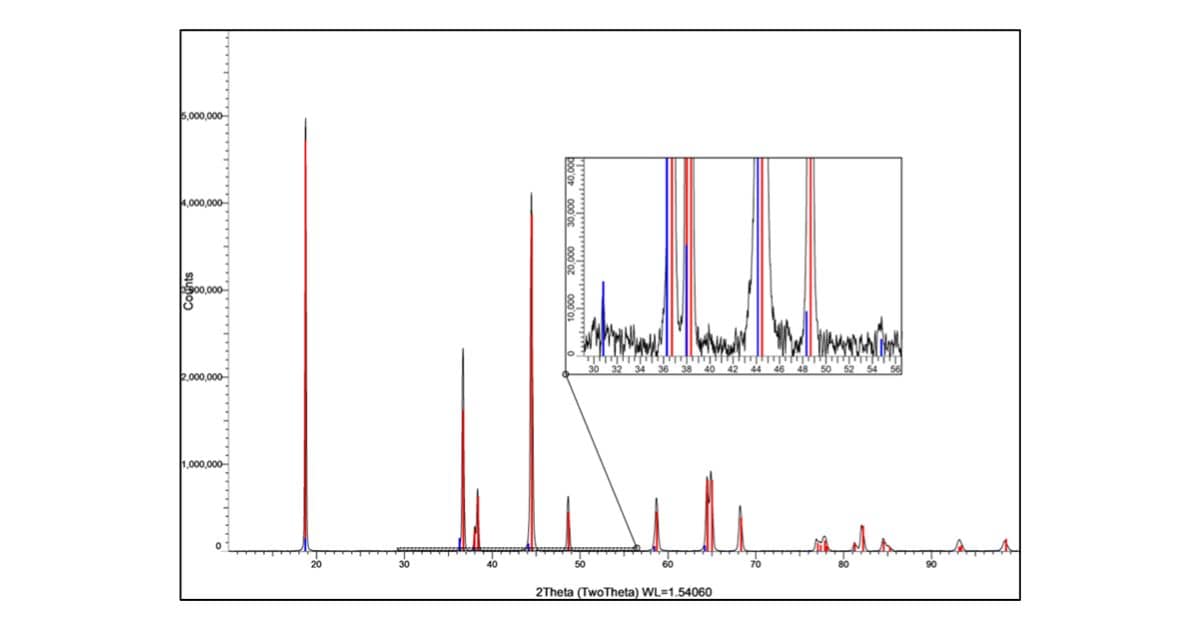

XRD with phase matching.
2.5. Separator and Binder Characterization
In order to evaluate separator enhancements such as ceramic coatings, shutdown layers, and polymer blends engineered for safety and ionic transport, GHB Intellect can conduct in-depth separator analyses, including:
- Cross-section and planar SEM imaging
- Ceramic coating thickness measurement
- FTIR and Raman for polymer/binder identification
- DSC/TGA for thermal shrinkage and melting behavior
- Mechanical adhesion and peel-force testing
- Porosity measurements (2D SEM or 3D FIB-SEM)
FTIR analysis of Separator.
2.6. Electrolyte Composition, Additives, and SEI/CEI Investigation
GHB Intellect can also provide a complete chemical fingerprint of the electrolyte system using:
- ¹H and ¹⁹F NMR
- GC-MS for solvent and additive identification
- ICP-OES / ICP-MS for trace-metal analysis
- ToF-SIMS depth profiling for interfacial chemistry gradients
- FTIR for molecular functional-group mapping
This allows us to determine solvent blend ratios, SEI-forming additive packages (e.g., FEC, PS, VC), salt systems (LiFSI, LiPF₆), and their decomposition pathways—critical for evaluating fast-charging or long-cycle electrolyte innovations.

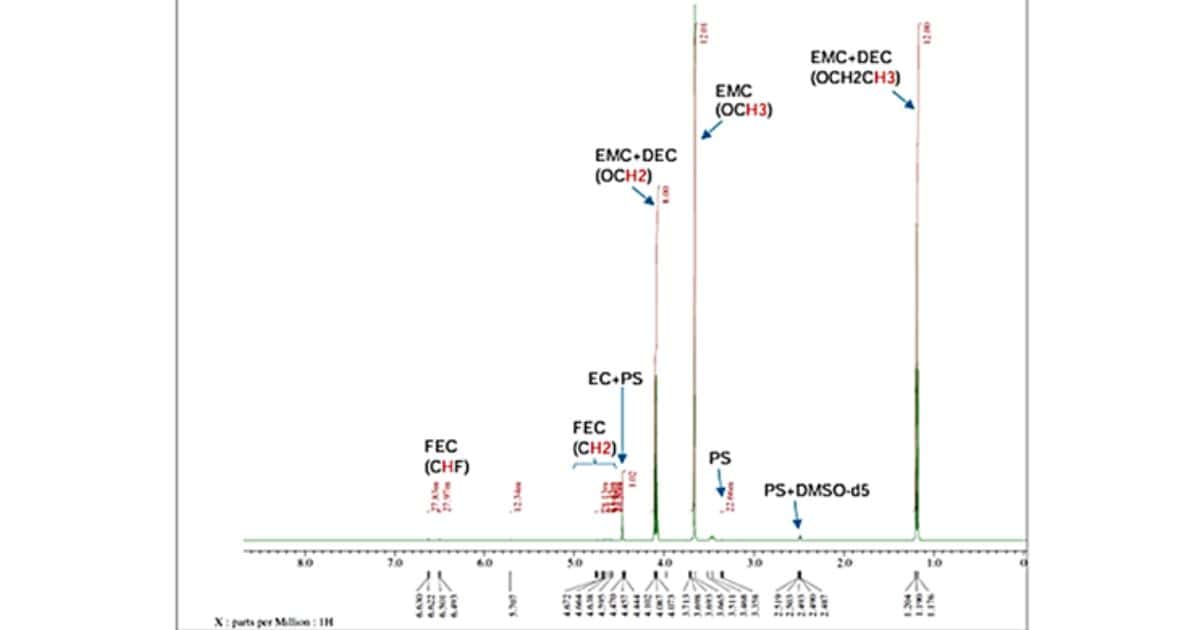

NMR Fingerprinting.
2.7. Electrochemical Performance Mapping and Correlation
In order to connect structural and chemical findings to real-world functionality, GHB Intellect performs:
- Relaxed OCV measurements (charge and discharge directions)

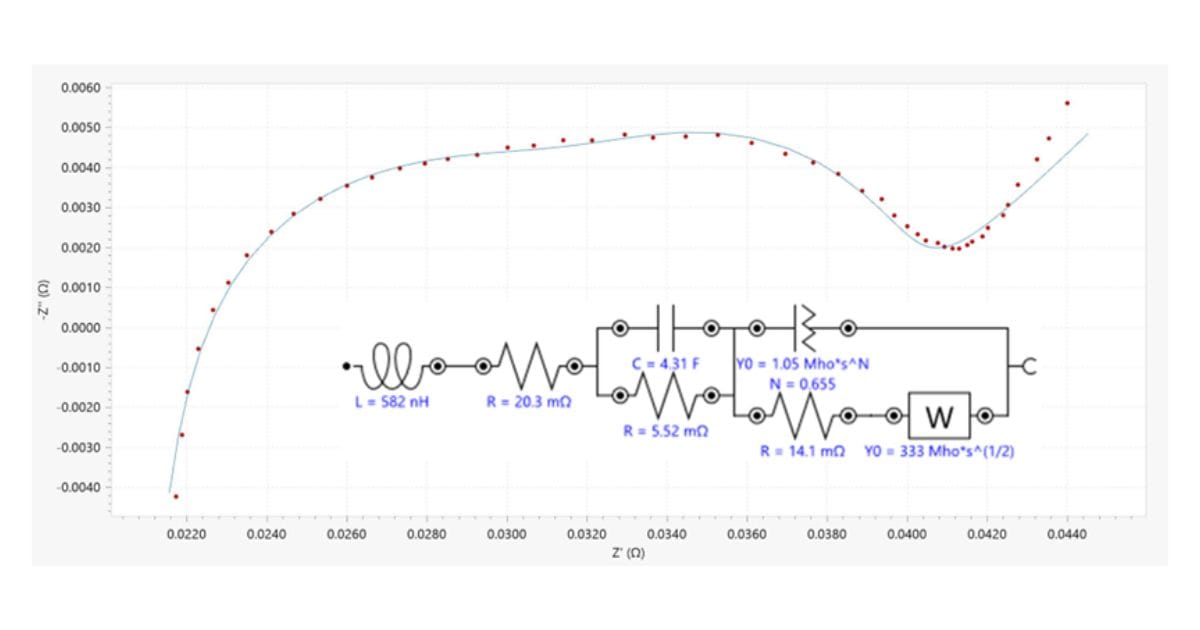

- EIS across full SOC range
- DCIR profiling
- Optional cycling / degradation studies
This provides a unified view of:
- Ohmic resistance
- Charge-transfer kinetics
- Diffusion behavior
- SEI/CEI stability
- SOC-dependent impedance
These tests confirm whether material innovations meaningfully translate into improved cycling behavior, faster charging capability, and superior thermal stability.
2.8. Deliverables and Reporting
All results are compiled into a comprehensive technical report. Deliverables include:
- Annotated figures and micrographs
- Full chemical and structural datasets
- Comparative analysis across multiple samples
- Benchmarking versus competitor or reference cells
- Executive-level summary with key findings
